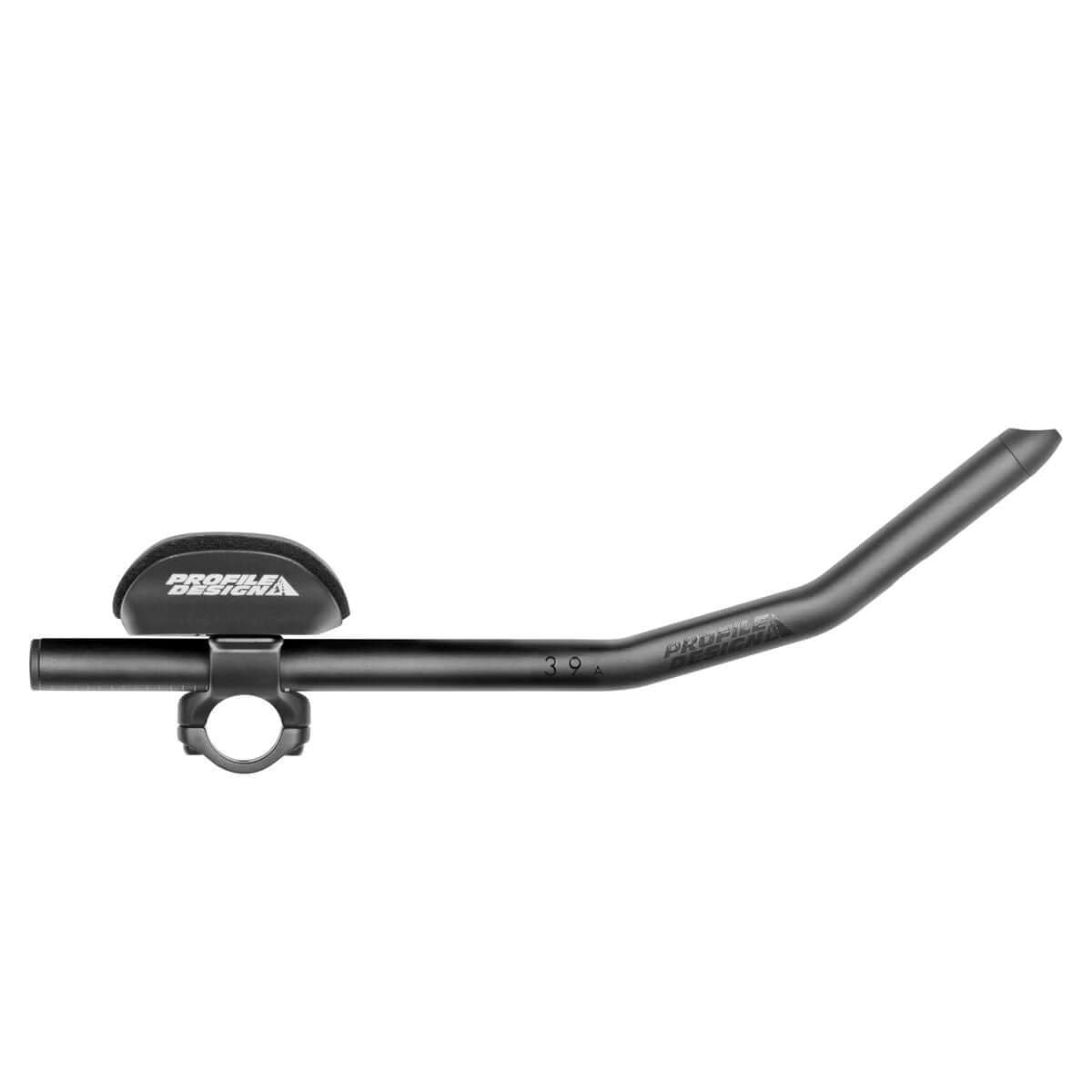

SONIC/ERGO/39A PROFILE DESIGN EXTENSION

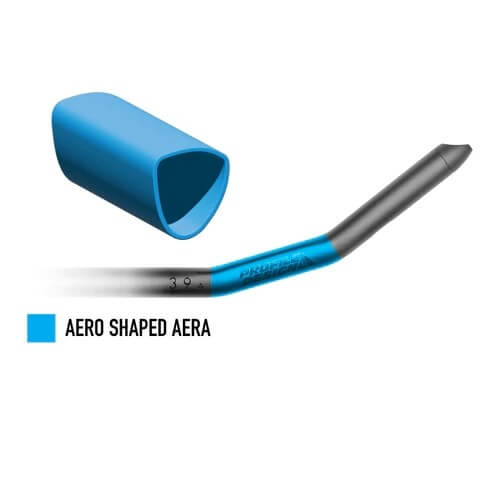

The Sonic/Ergo is designed to feature a minimal frontal area to create as little aerodynamic drag as possible. The primary purpose of an aerobar is , of course, to get the rider into a fast position despite a fairly minimalist appearance, the Sonic/Ergo offers a full range for exactly this purpose.

The rider can choose to hold high for the raised position or low for a more open, head-up position.

Technical specifications

• Support: Sonic
• Clamping diameter: 31.8 mm (24.0 with Shims)
• Armrest: Ergo / 10mm pads
• Armrest width: 124 mm to 290 mm in 18.5 mm steps (with 100 mm extensions)
• Armrest offset: -70mm to -17.5mm in 7.5mm increments
• Riser Stack: Minimum is 60mm and the bracket is compatible with our existing risers which rise to a 130mm stack (70mm spacers added)
• Construction: 6061-T6 aluminum, pre-drilled for bar end cable routing

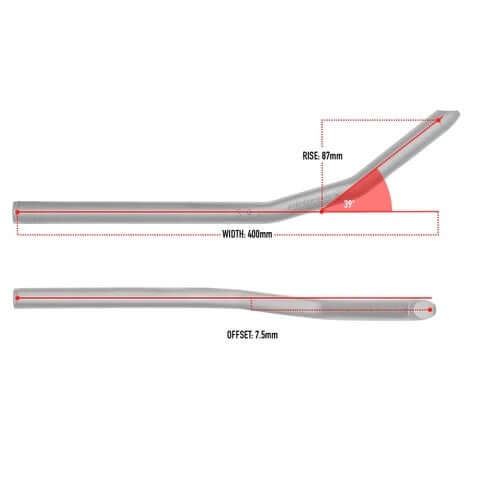

• Extension Extension length: 400 mm
• Extension angle: 39 degrees
• Extension lift: 87 mm (bottom to top)
• Extension cutout: 15mm total
• Outer diameter: 22.2 mm
• Inner diameter: 19.2 mm
• Shifter Compatibility: Electronic or mechanical
• Color: Anodized Matte Black
• Weight: 564 g
